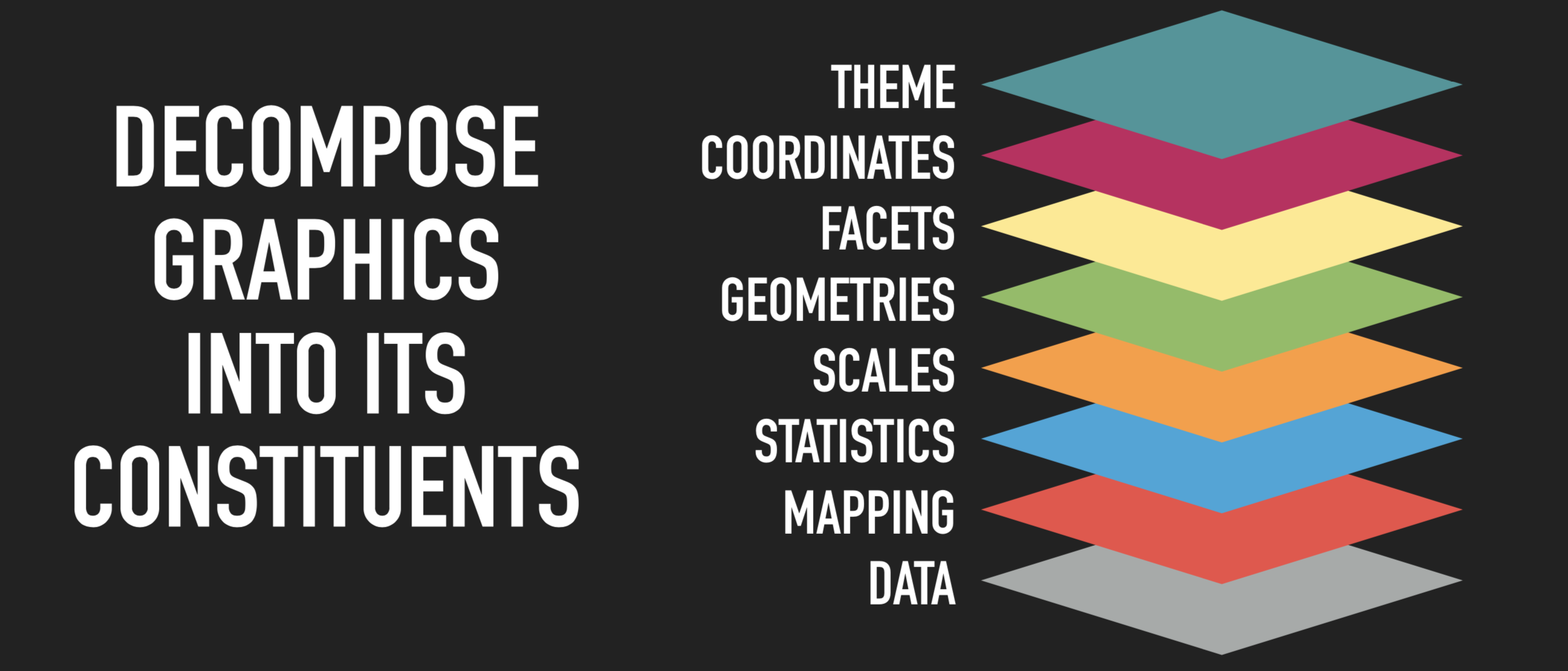

Grammar of Graphics

Grammar of Graphics

Source: ggplot2 workshop by @thomasp85

Grammar of Graphics

Source: ggplot2 workshop by @thomasp85

• Your dataset

• Tidy format

Grammar of Graphics

Source: ggplot2 workshop by @thomasp85

• This is how we tell R which variables we want to plot

• Aesthetics mapping
  Links variable in the data to graphical properties

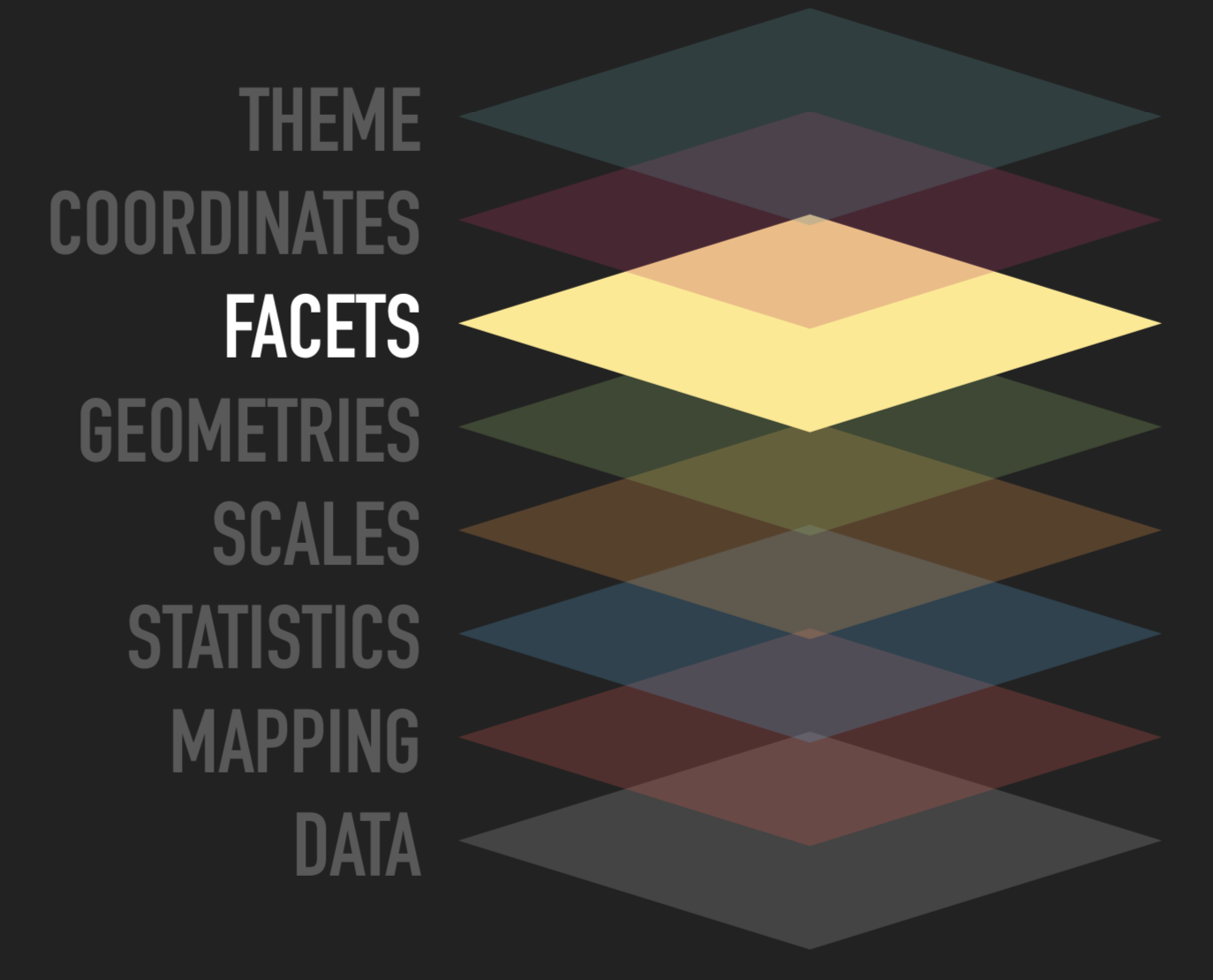

• Facets mapping
  Links variable in data to panels in the plot layout

Grammar of Graphics

Source: ggplot2 workshop by @thomasp85

• Even tidy data may need some transformation

• Transform input variables to displayed values

  • Bins for histogram
  • Summary statistics for boxplot
  • No. of observations in a category for bar chart

• Implicit in many plot types

Grammar of Graphics

Source: ggplot2 workshop by @thomasp85

• Help you interpret the plot

  • Categories -> color
  • Numeric -> position

• Automatically generated in ggplot and can be customized

  • log scale
  • time series

Grammar of Graphics

Source: ggplot2 workshop by @thomasp85

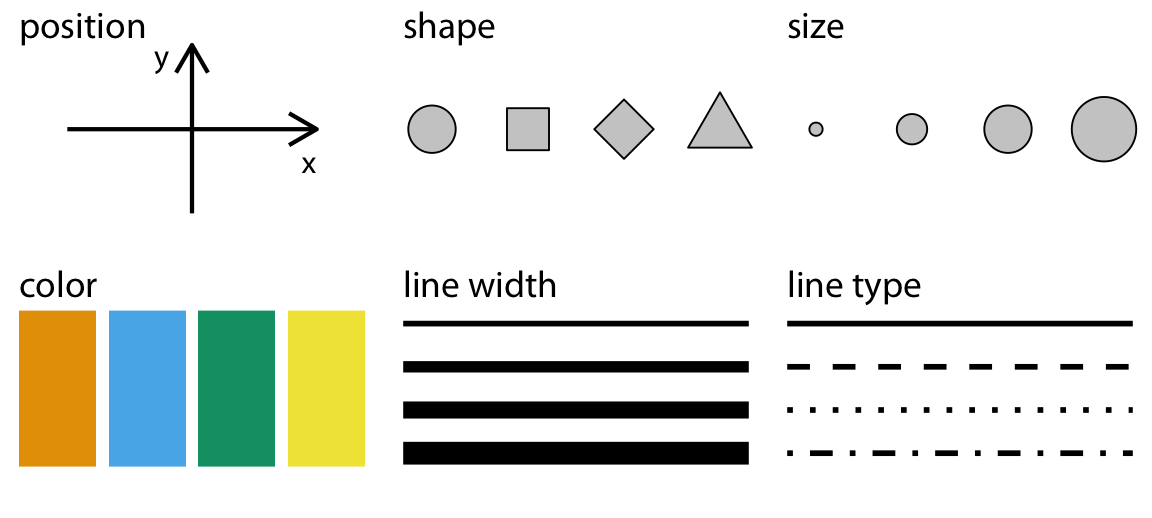

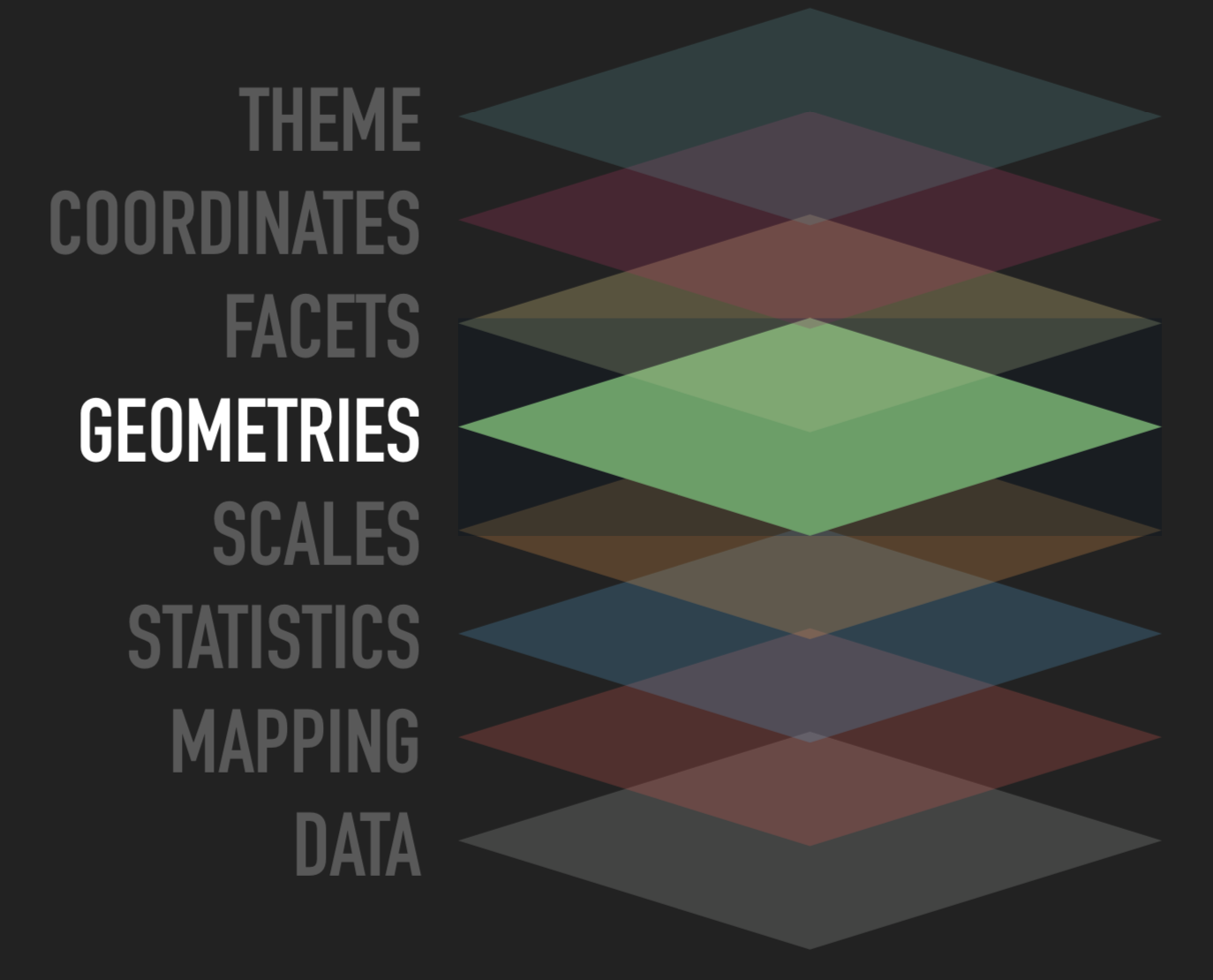

• Aesthetics as graphical repersentations

• Determines your plot type

  • bar chart
  • scatter
  • boxplot
  • ...

Grammar of Graphics

Source: ggplot2 workshop by @thomasp85

• Divide your data into panels using one or two groups

• Allows you to look at smaller subsets of data

Grammar of Graphics

Source: ggplot2 workshop by @thomasp85

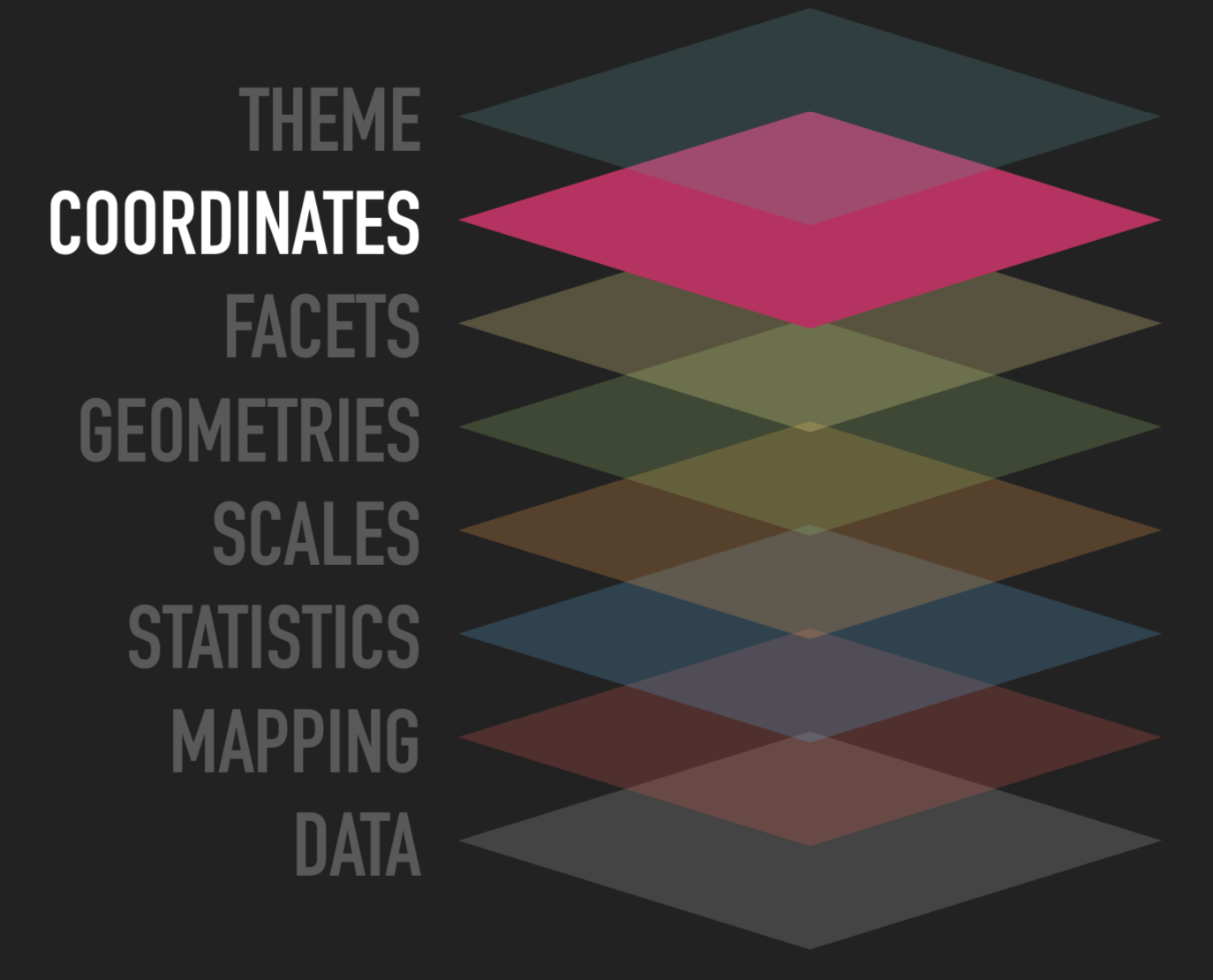

• Positions are interpreted by the coordinate system

• Defines the physical mapping of the aesthetics

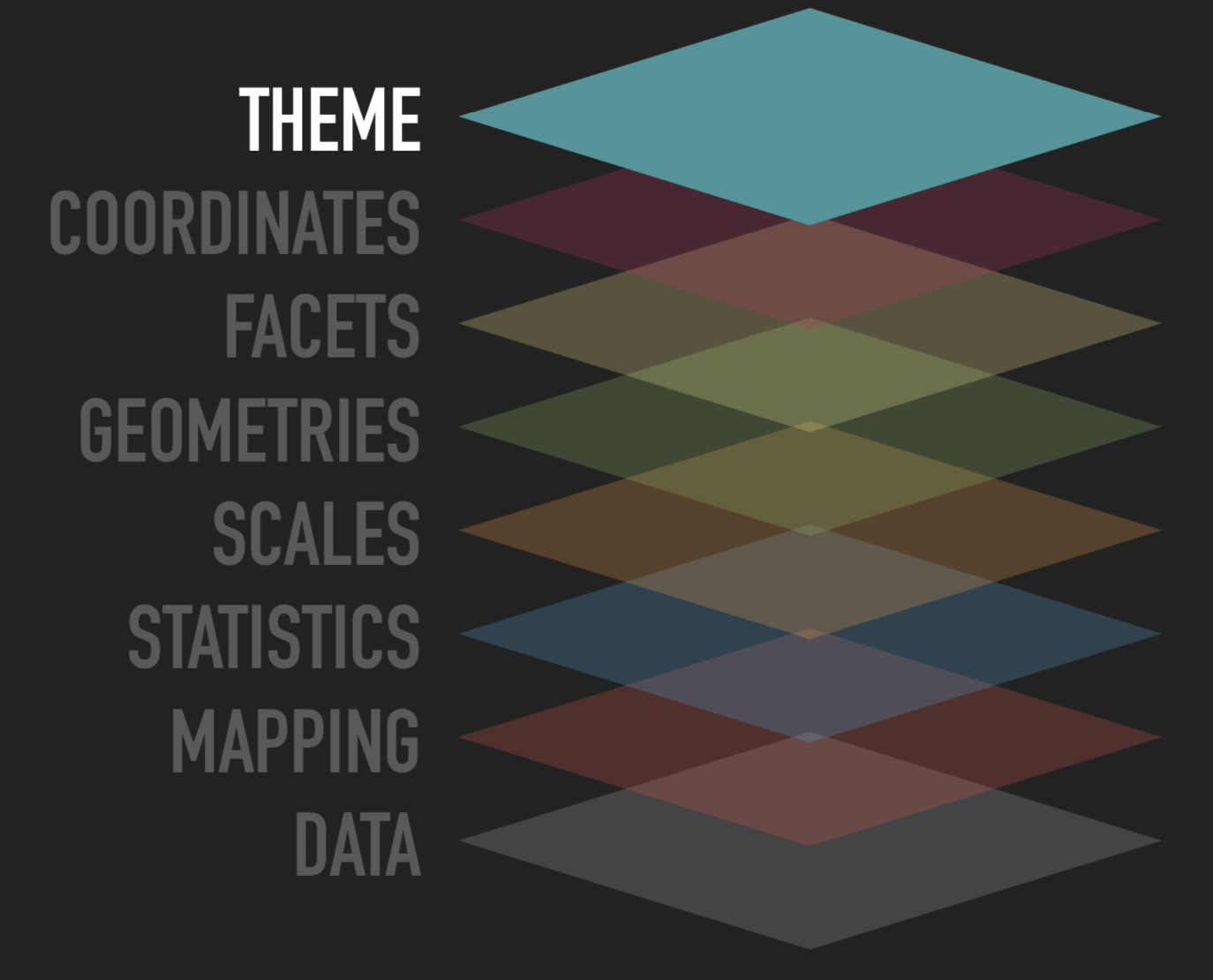

Grammar of Graphics

Source: ggplot2 workshop by @thomasp85

• Overall look of the plot

• Spans every part of the graphic that is not linked to the data

  • "non-data ink"

Getting Started

• Load the tidyverse package

library(tidyverse)

• If this is your first time you may have to install it first

install.packages("tidyverse")
library(tidyverse)

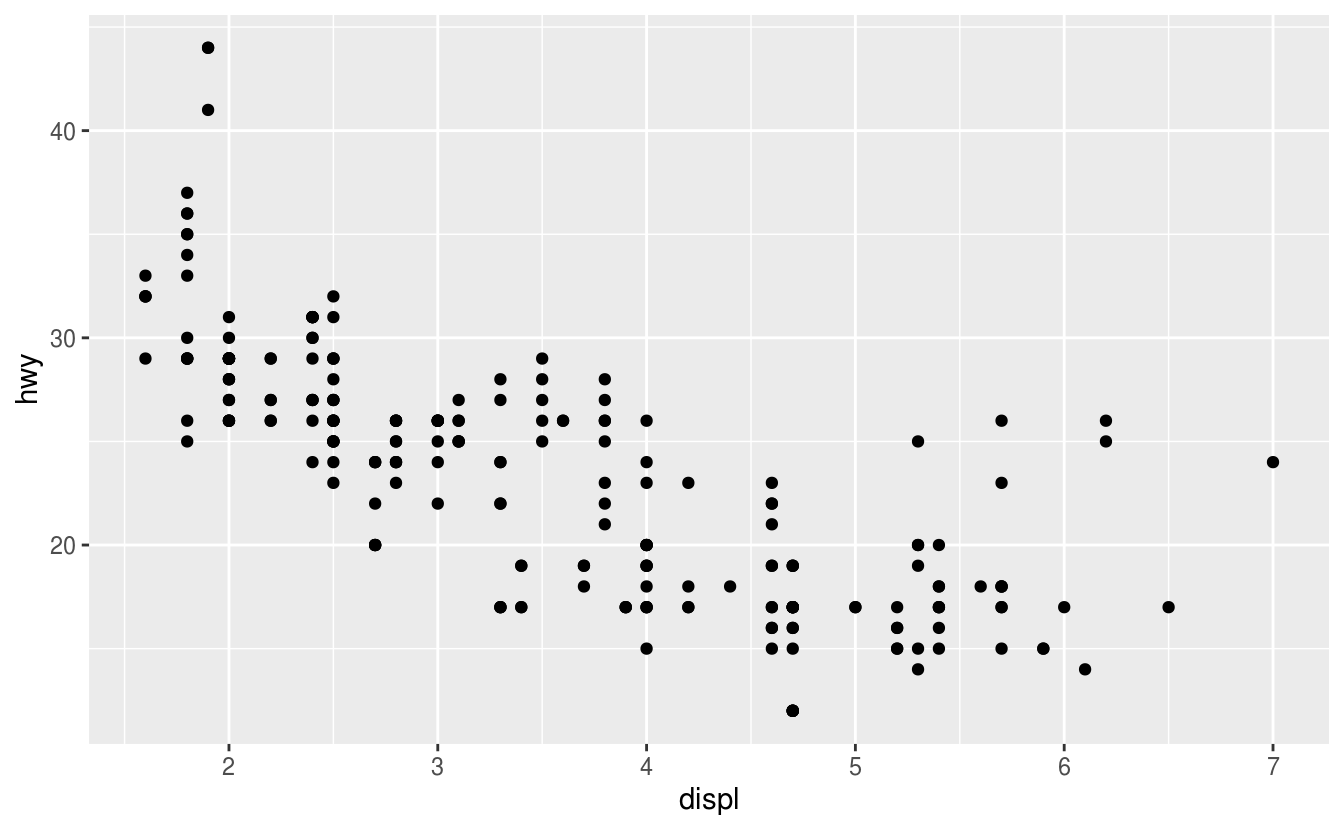

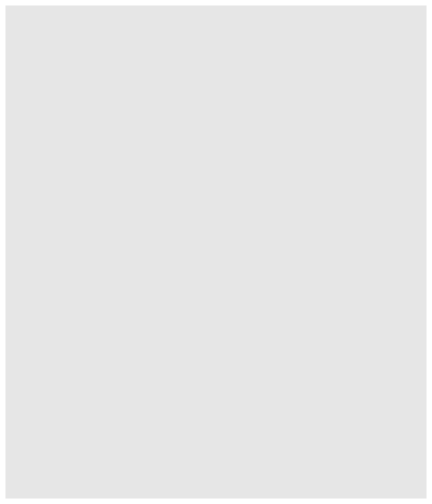

Your first ggplot

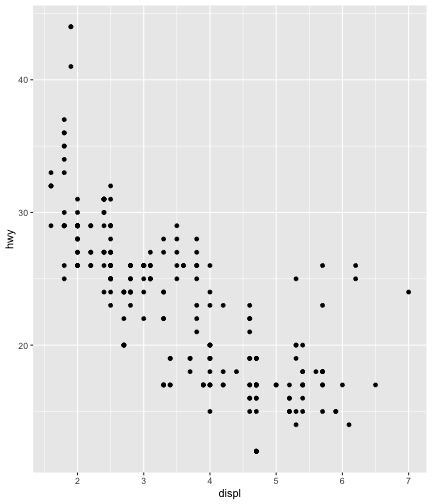

ggplot(data=mpg)+
  aes(x=displ)+
  aes(y=hwy)+
  geom_point()

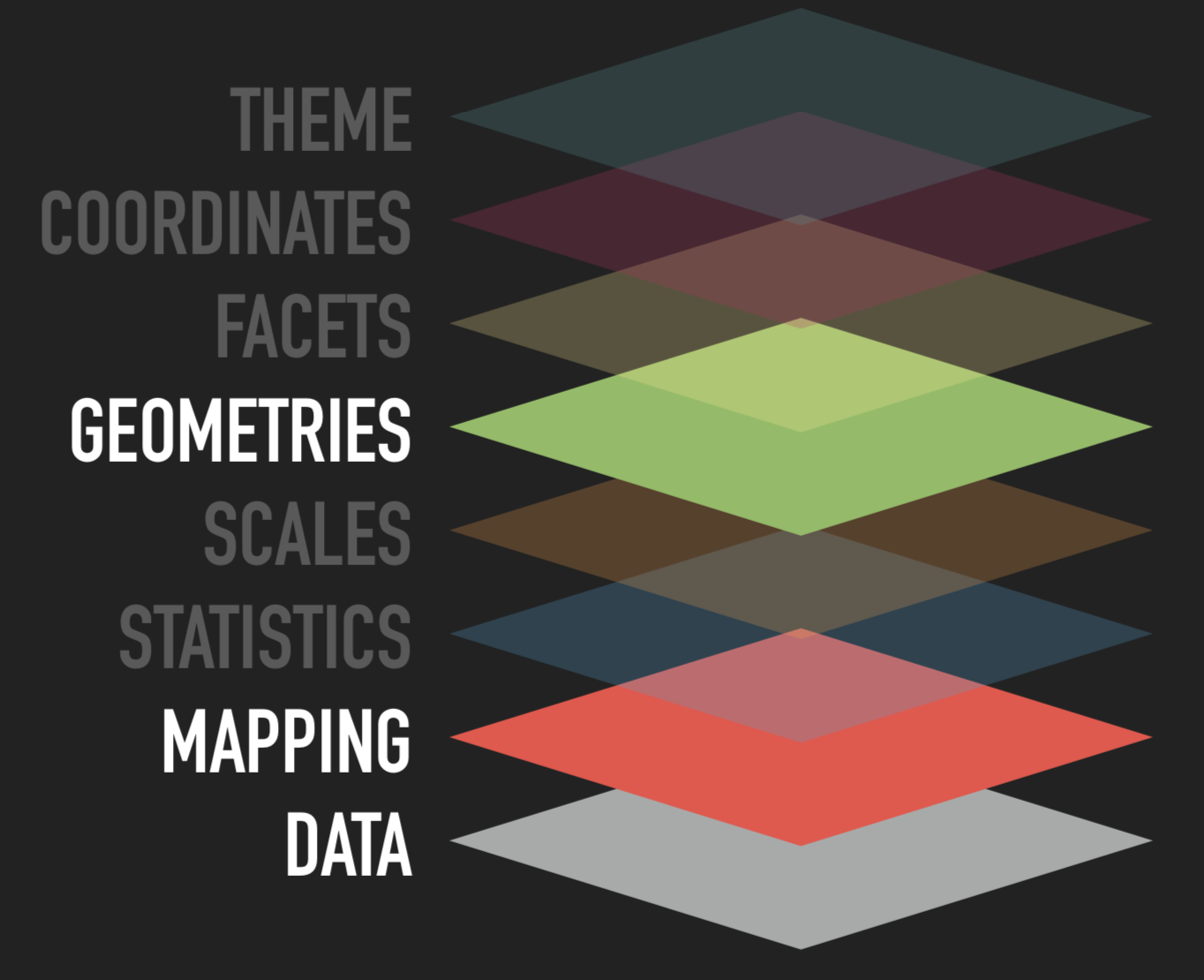

What did we need?

Source: ggplot2 workshop by @thomasp85

Use of + to link code instead of %>%

ggplot was built before %>% was introduced

mpg %>%
  ggplot()+
  aes(x=displ)+
  aes(y=hwy)+
  geom_point()

is same as

ggplot(data=mpg)+
  aes(x=displ)+
  aes(y=hwy)+
  geom_point()

Common Problems

• Make sure that every ( is matched with a )

• Make sure that every " is paired with another "

• Make sure you use + and not %>%

• Make sure that + is in the right place: it has to come at the end of the line, not the start. The following code will not work

ggplot(data = mpg)
+ geom_point(mapping = aes(x = displ, y = hwy))

• Look for help by typing ?function_name

  • scroll down to examples

• Look at the error message

  • try googling the error message

Quiz

What is the minimum requirement to make a plot using ggplot()?

1. data, scales, theme
2. data, facets, geometries
3. data, statistics, coordinates
4. data, mapping, geometries

Quiz

Which of this is correct syntax for ggplot()?

a) ggplot(data = mpg)
+ geom_point(mapping = aes(x = displ, y = hwy))

b) ggplot(data = mpg) +
geom_point(mapping = aes(x = displ, y = hwy))

c) ggplot(data = mpg) %>%
geom_point(mapping = aes(x = displ, y = hwy))

d) ggplot(data = mpg)
geom_point(mapping = aes(x = displ, y = hwy))

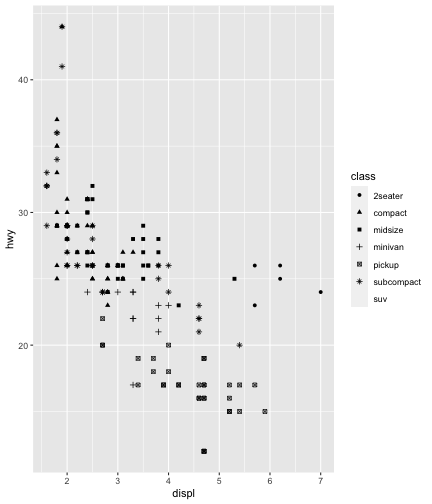

Aesthetics

ggplot(data=mpg)+
  aes(x=displ)+
  aes(y=hwy)+
  aes(shape=class)+
  geom_point()

Aesthetics

Setting the properties of geom manually

ggplot(data = mpg) +
  geom_point(mapping = aes(x = displ, y = hwy), color = "blue")

Here, the color "blue" doesn’t convey information about a variable, but only changes the appearance of the plot

Aesthetics

To set a geometric property manually, place it outside of aes()

• The name of a color as a character string

• The size of a point in mm

• The shape of a point as a number

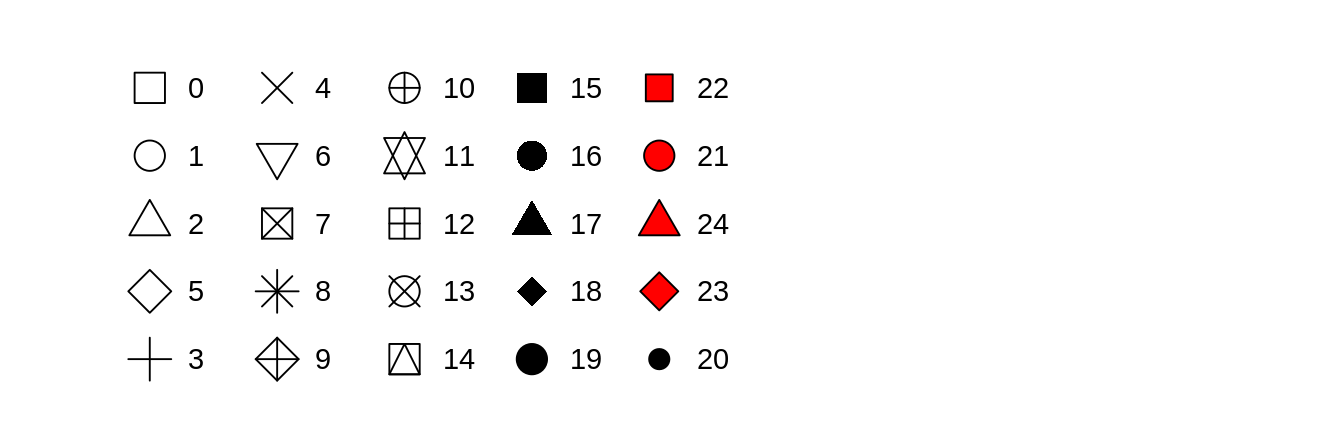

R has 25 built in shapes that are identified by numbers

Aesthetics

Remember aesthetics depend on geometry...

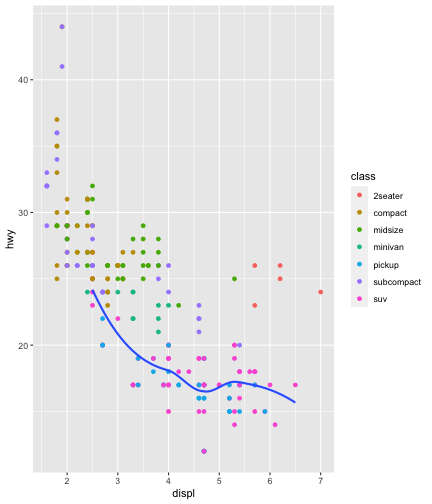

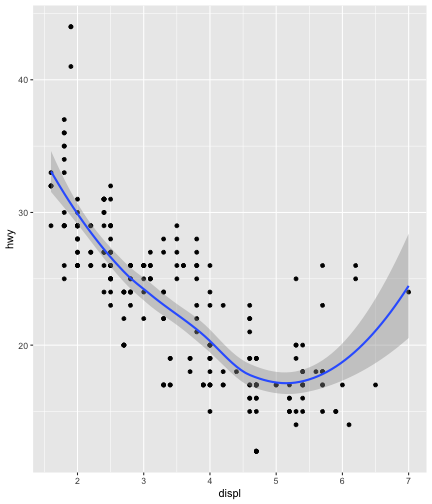

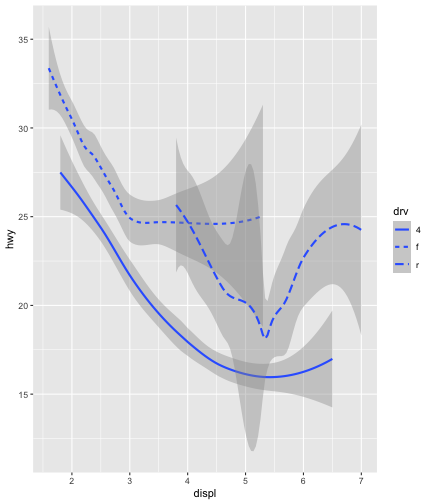

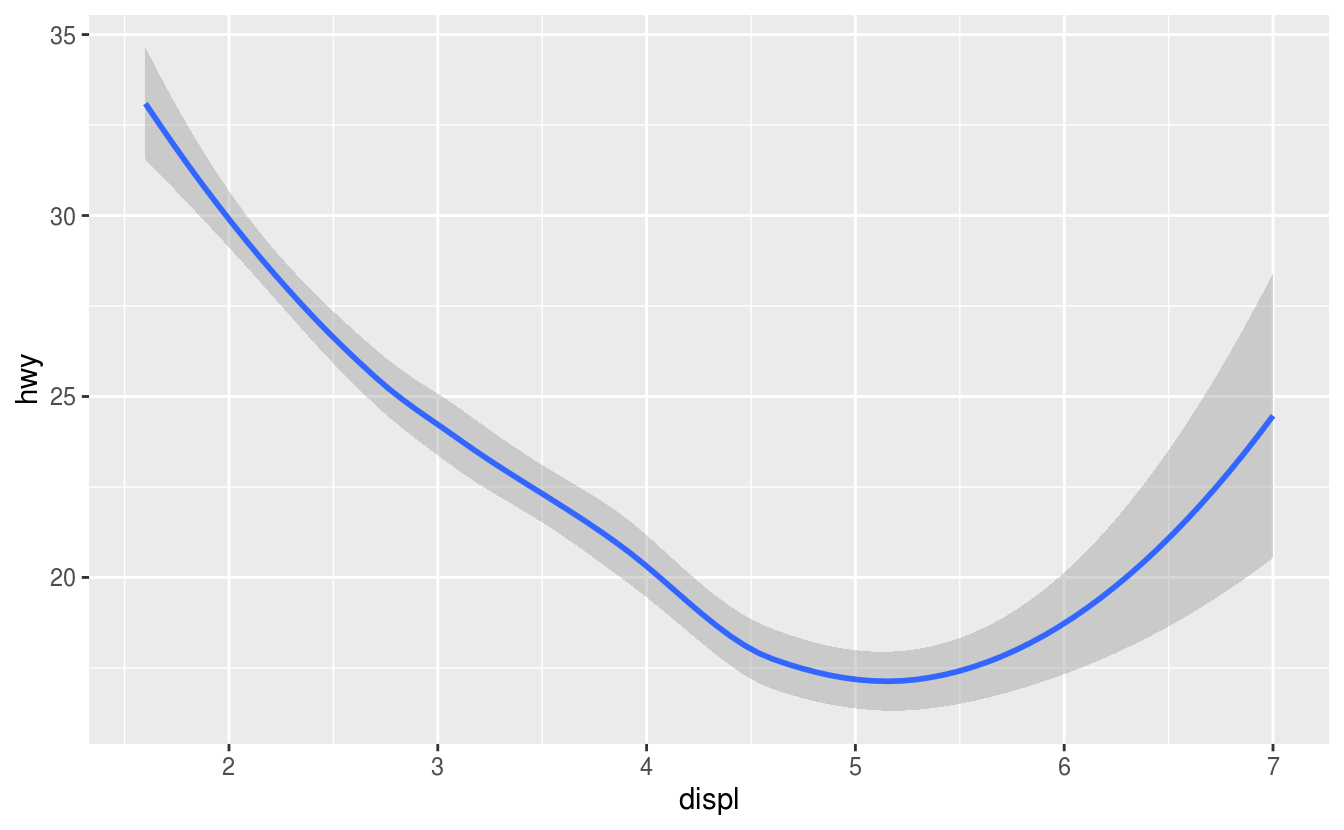

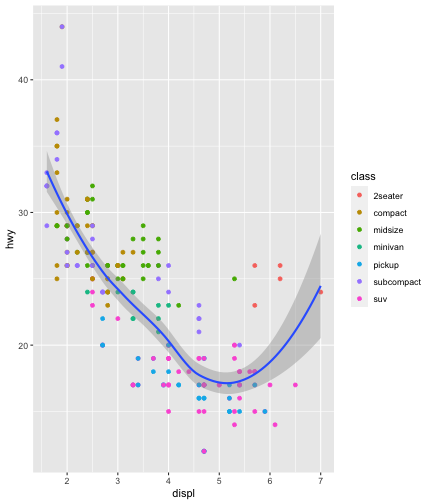

Mulitple geoms

ggplot(data = mpg,
       mapping = aes(
         x = displ,
         y = hwy)) +
  geom_point(
    mapping = aes(
      color = class)) +
  geom_smooth()

Mulitple geoms

ggplot(data = mpg,
       mapping = aes(
         x = displ,
         y = hwy)) +
  geom_point(
    mapping = aes(
      color = class)) +
  geom_smooth(data =
                filter(mpg,
                       class == "suv"),
              se = FALSE)

Quiz

Which of the following is NOT true?

1. If aes() function is placed inside ggplot(), the same aes is used for all layers

2. If aes() is placed outside ggplot() function then its definition is used for the specific layer

3. Multiple aes() can be defined for multiple geometries within the same plot

4. Variables or columns to be plotted can be placed outside aes()

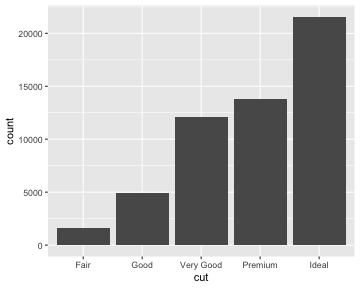

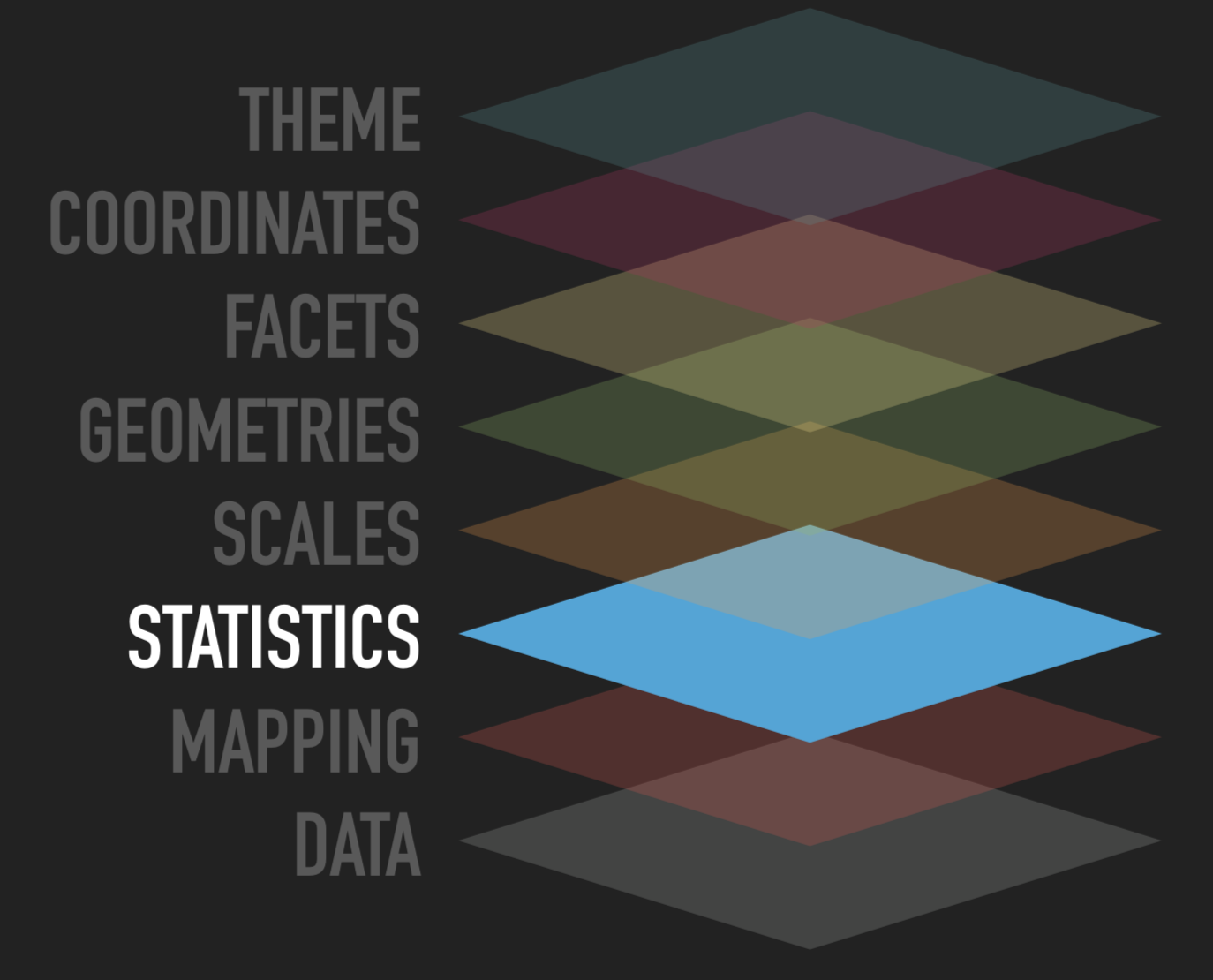

Statistical Transformations

Statistical Transformations

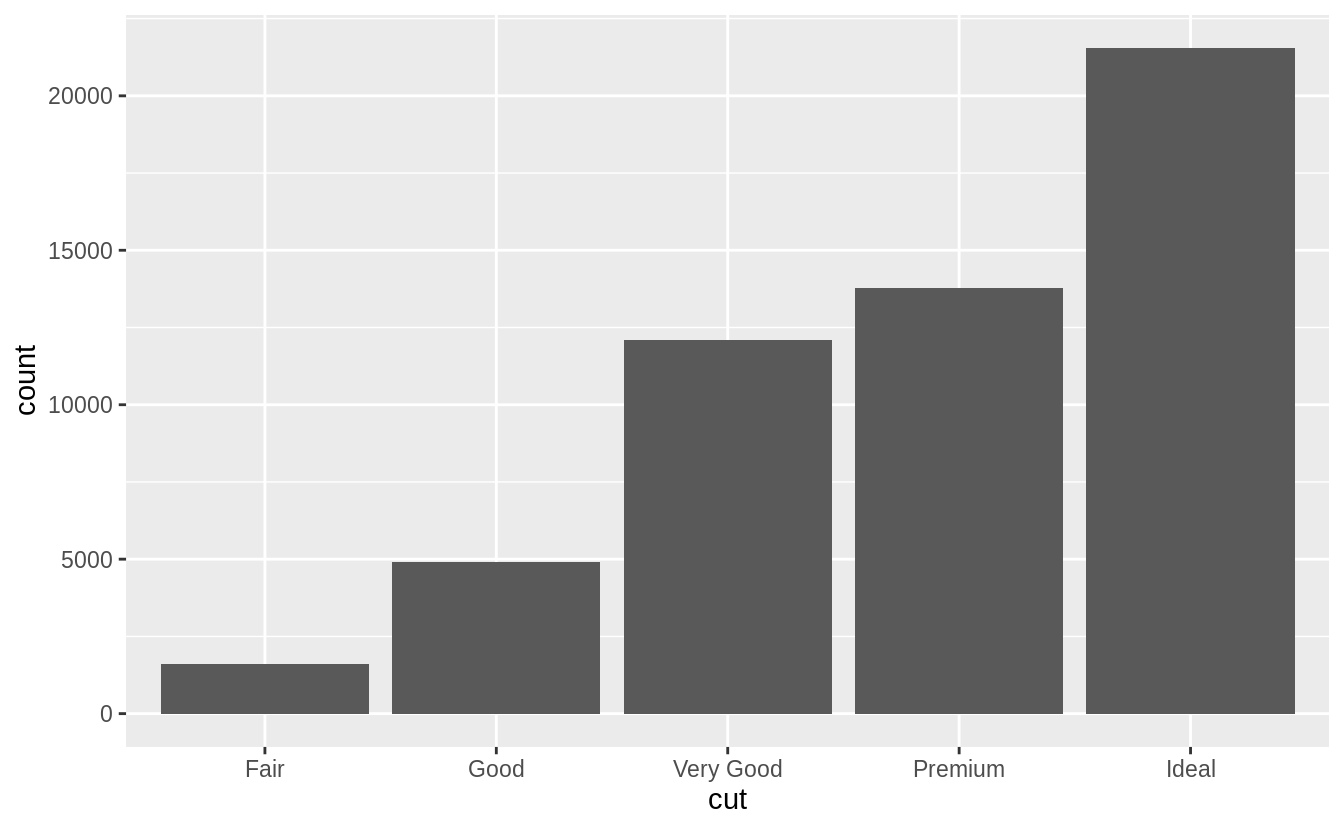

ggplot(data = diamonds) +
  geom_bar(mapping = aes(x = cut))

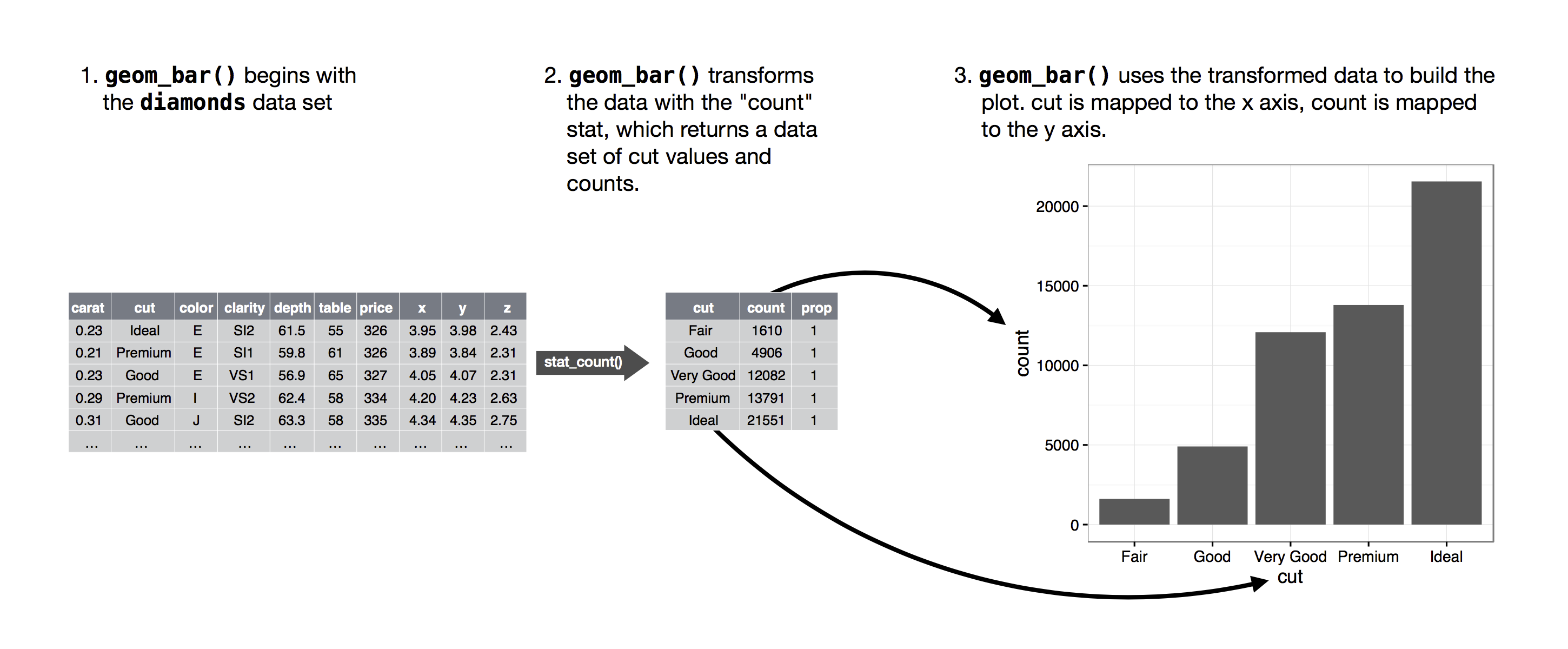

Where does count on y-axis come from?

Statistical Transformations

The algorithm used to calculate new values for a graph is called a stat, short for statistical transformation

Statistical Transformations

You can find out which stat each geom uses by looking at the default value of the stat argument of the help page.

What it the default stat for geom_bar?

Statistical Transformations

• Overriding default options
• Here, display bar chart of proportions instead of count

ggplot(data = diamonds) +
  geom_bar(mapping = aes(x = cut, y = stat(prop),
                         group = 1))

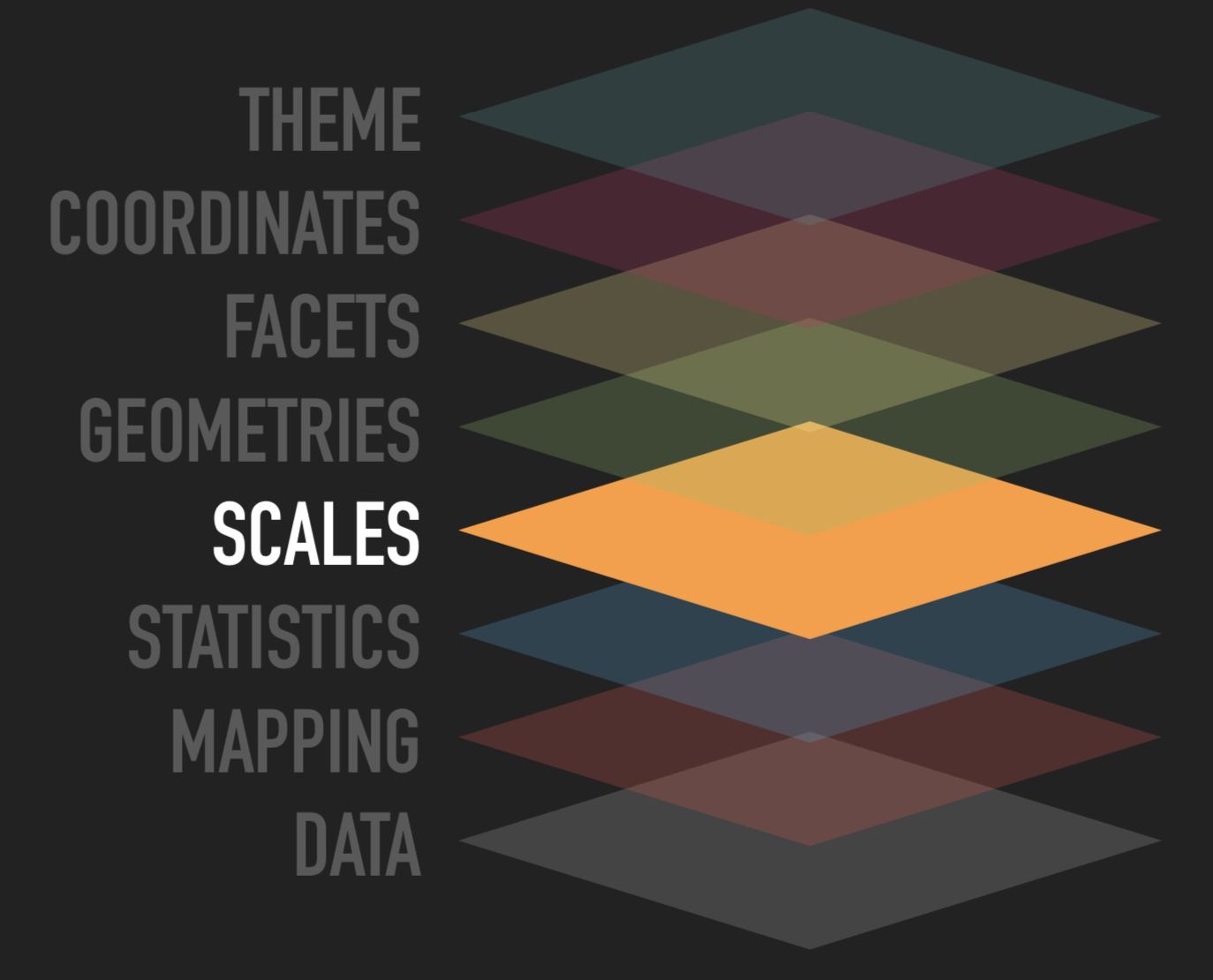

Scales

Source: ggplot2 workshop by @thomasp85

Scales

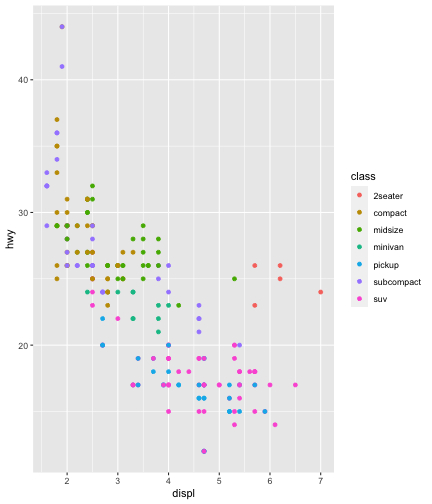

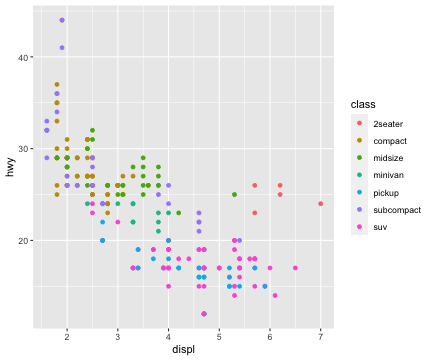

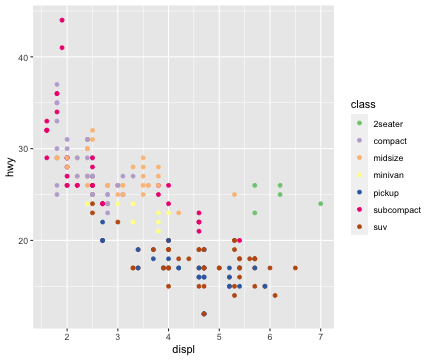

ggplot(mpg) +
  geom_point(aes(x = displ, y = hwy, colour = class))

Scales

ggplot(mpg) +
  geom_point(aes(x = displ, y = hwy, colour = class))+
  scale_colour_brewer(type = 'qual')

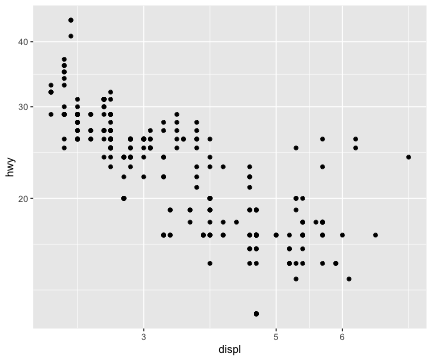

Scales

ggplot(mpg) +
  geom_point(aes(x = displ, y = hwy)) +
  scale_x_continuous(breaks = c(3, 5, 6)) +
  scale_y_continuous(trans = 'log10')

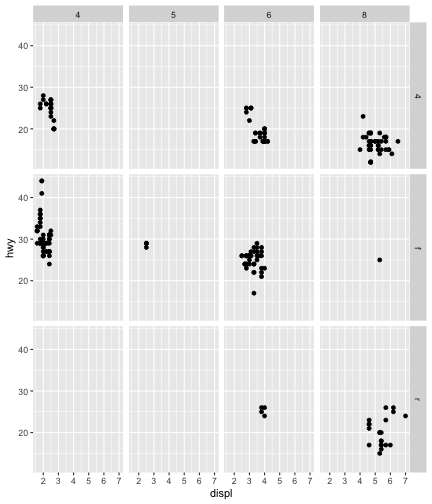

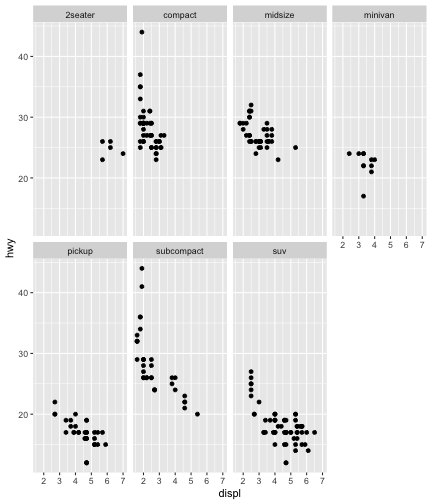

Facets

ggplot(data = mpg) +
  geom_point(mapping = aes(
    x = displ,
    y = hwy)) +
  facet_grid(drv ~ cyl)

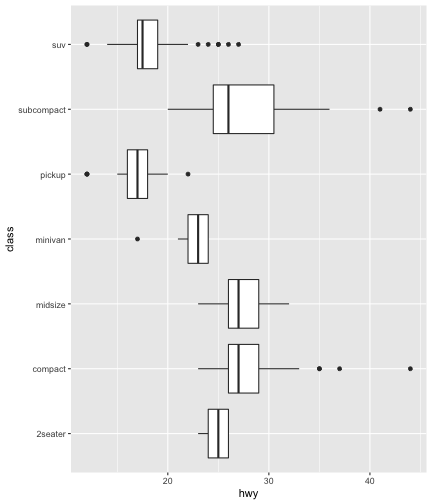

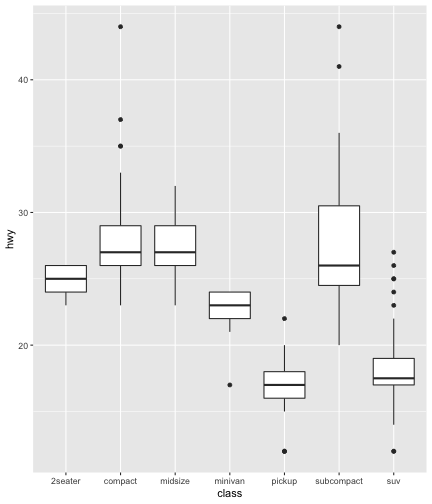

Coordinate Systems

ggplot(data = mpg,
       mapping = aes(
         x = class,
         y = hwy)) +
  geom_boxplot() +
  coord_flip()

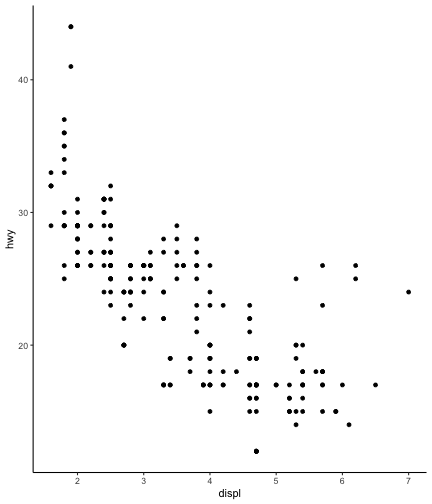

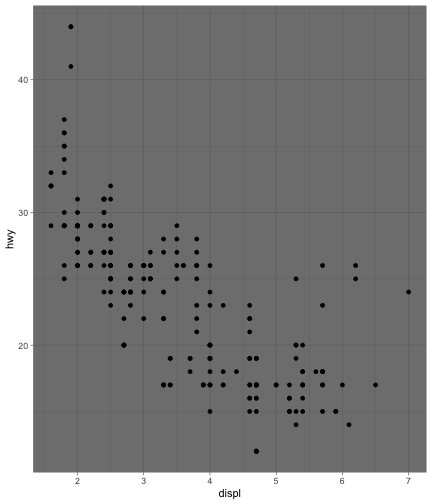

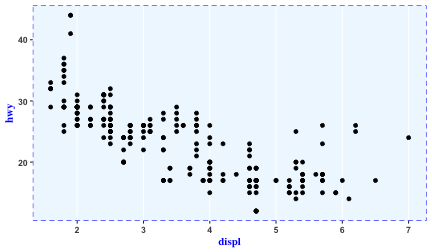

Themes

ggplot(data=mpg)+
  aes(x=displ)+
  aes(y=hwy)+
  geom_point()+
  theme_dark()

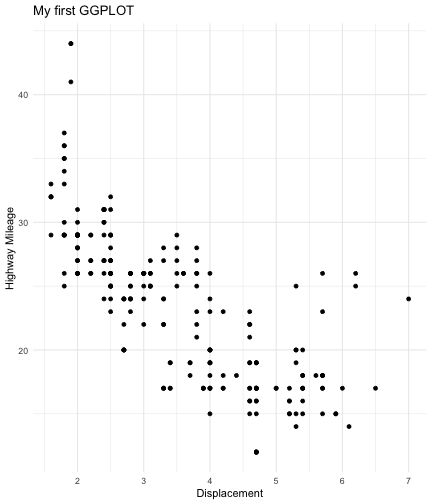

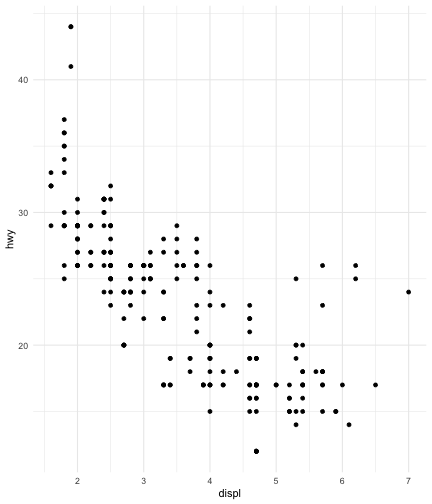

ggplot object

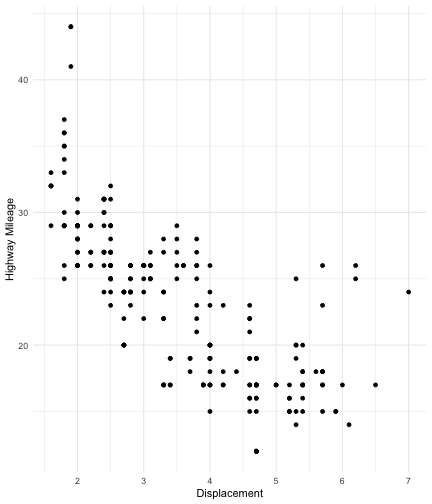

myplot <- ggplot(data=mpg)+
  aes(x=displ)+
  aes(y=hwy)+
  geom_point()+
  theme_minimal()

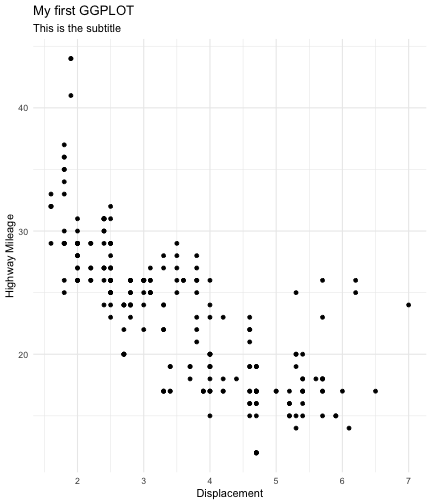

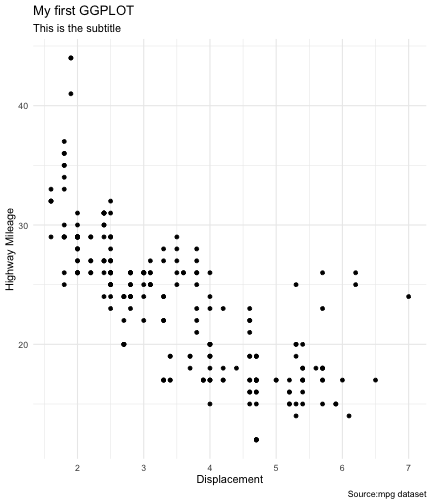

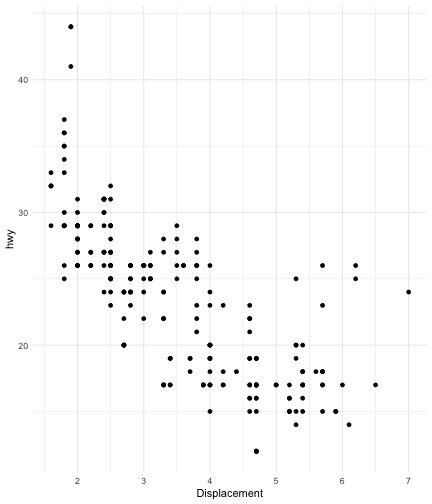

myplot+
  labs(x="Displacement")+
  labs(y="Highway Mileage")+
  labs(title="My first GGPLOT")+
  labs(subtitle="This is the subtitle")+
  labs(caption="Source:mpg dataset")

A ggplot template

ggplot(data = <DATA>) +
<GEOM_FUNCTION>(
mapping = aes(<MAPPINGS>),
stat = <STAT>,
position = <POSITION>
) +
<COORDINATE_FUNCTION> +
<FACET_FUNCTION>

In practice, you rarely need to supply all seven parameters to make a graph because ggplot2 will provide useful defaults for everything except the data, the mappings, and the geom function.

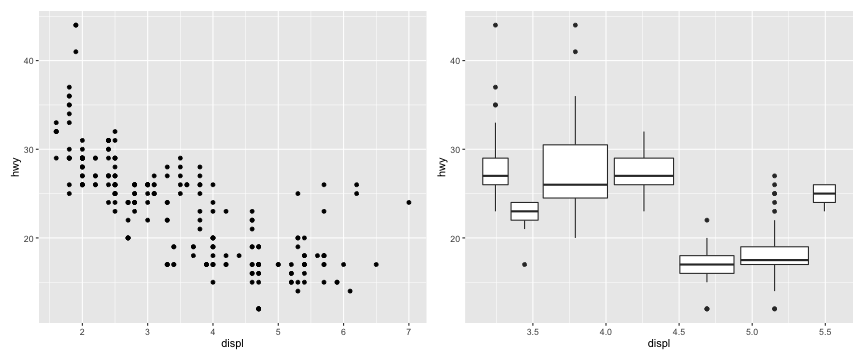

Plot Composition with patchwork

library(ggplot2)
library(patchwork)
p1 <- ggplot(mpg) + geom_point(aes(displ, hwy)) # first plot
p2 <- ggplot(mpg) + geom_boxplot(aes(displ, hwy, group = class)) # second plot
p1+p2 # combined plot output using patchwork package

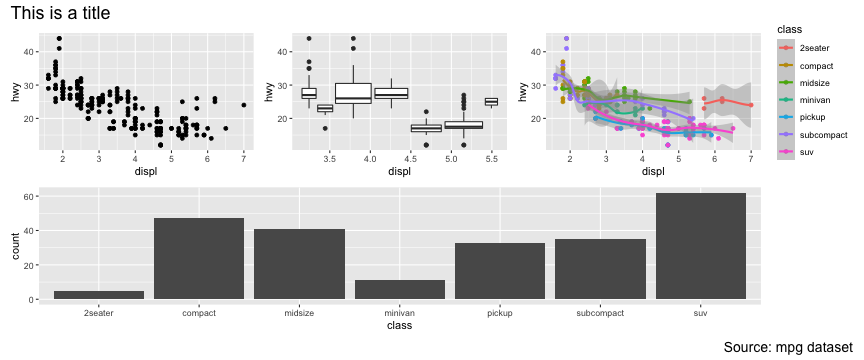

Plot Composition with patchwork

p3 <- ggplot(mpg, aes(displ, hwy))+geom_point(aes(color=class))+geom_smooth(aes(color=class))
p4 <- ggplot(mpg) + geom_bar(aes(class))
p5<-(p1 | p2 | p3) / p4
p5+plot_annotation('This is a title', caption = 'Source: mpg dataset',
                   theme = theme(plot.caption = element_text(size = 14),
                                 plot.title = element_text(size = 18)))

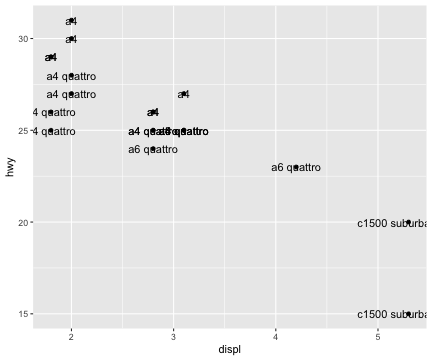

Plot Annotation without ggrepel

ggplot(mpg[1:20,], aes(x = displ, y = hwy)) +
  geom_point() +
  geom_text(aes(label = model))

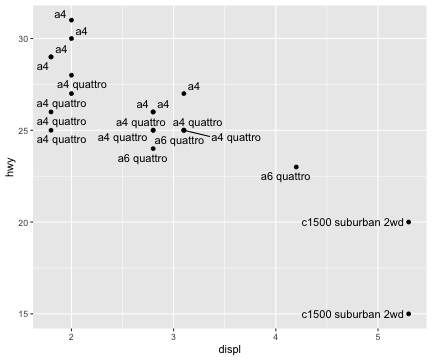

Plot Annotation with ggrepel

library(ggrepel)
ggplot(mpg[1:20,], aes(x = displ, y = hwy)) +
  geom_point() +
  geom_text_repel(aes(label = model))

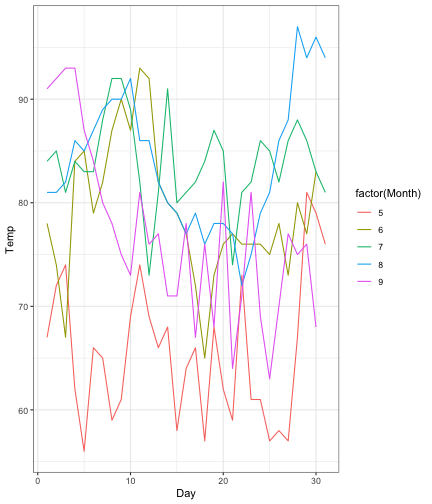

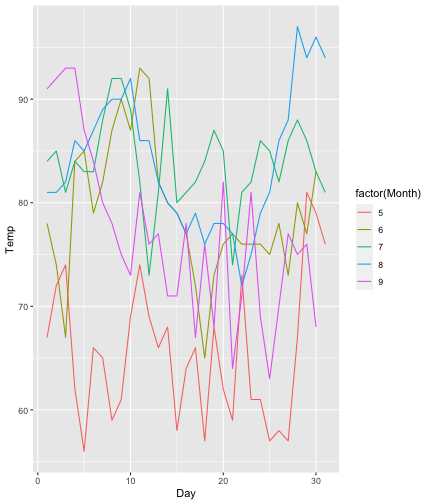

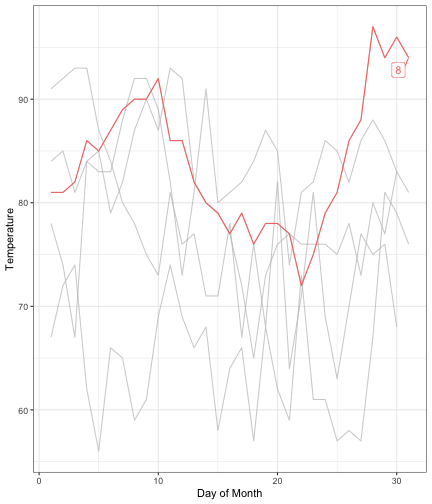

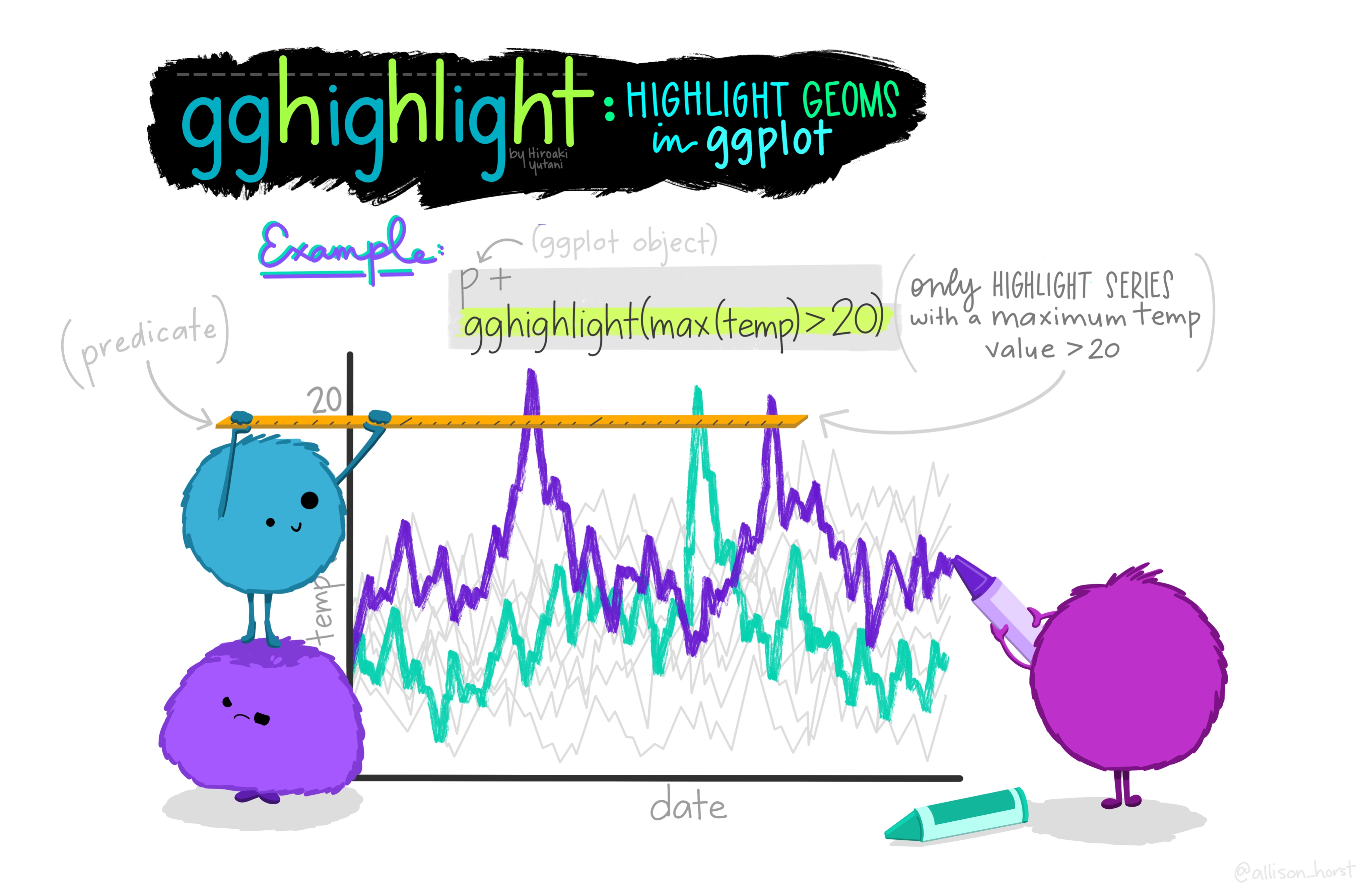

Highlighting geoms

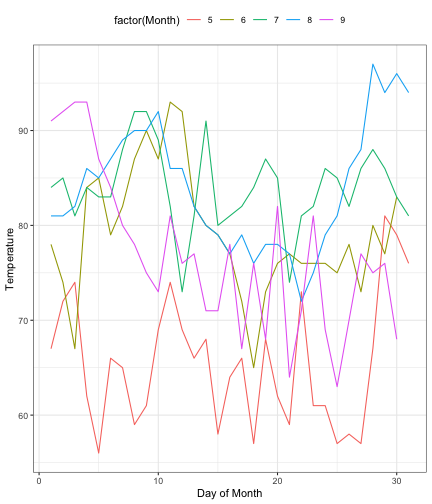

library(gghighlight)
ggplot(airquality)+
  geom_line(aes(Day, Temp,
                color=factor(Month)))+
  theme_bw()+
  labs(x = "Day of Month",
       y = "Temperature") +
  theme(legend.position = "top")+
  gghighlight(max(Temp) > 93,
              label_key = Month)

What next?

• ggplot2 extensions
• Rstudio cheatsheet

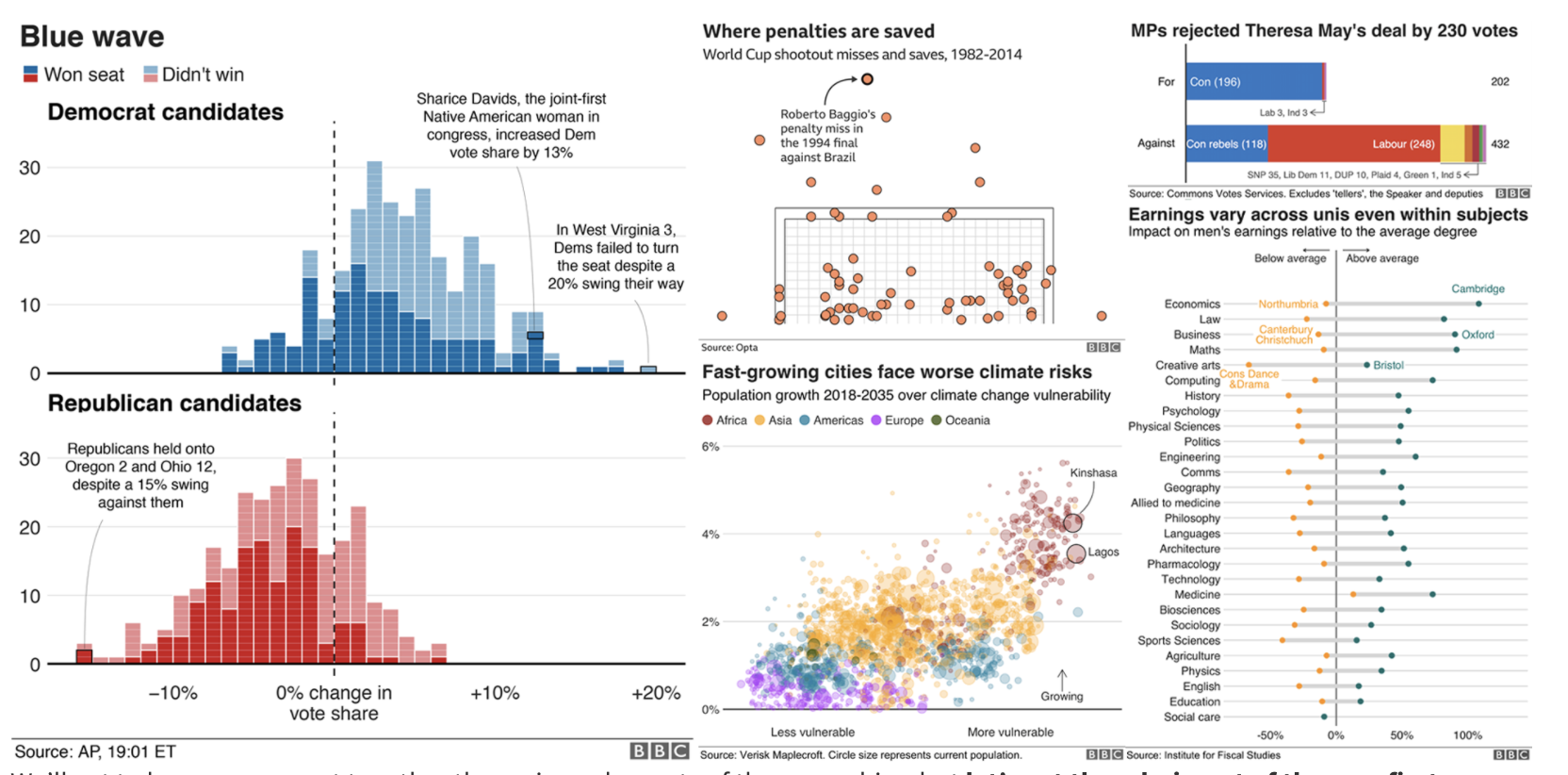

• BBC Visual and Data Journalism cookbook for R graphics

Resources Used

• flipbookr package by Gina Reynolds

• xaringan package by Yihui Xie

• R for Data Science book by Hadley Wickham & Garrett Grolemund

• ggplot2 workshop by Thomas Lin Pedersen

• Illustrations by Allison Horst
